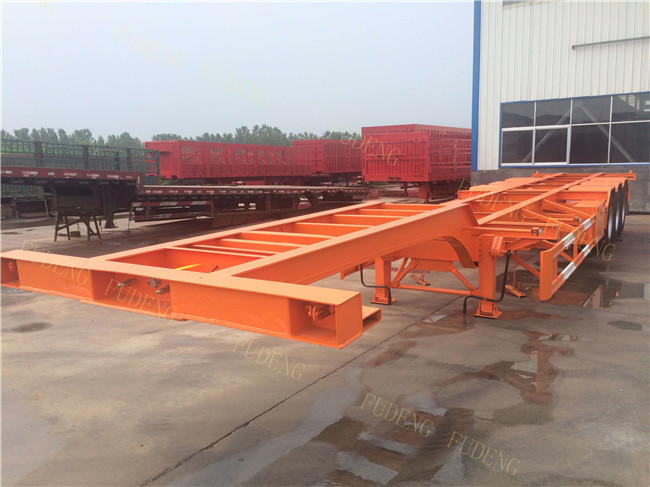

3 axle used container semi trailer, 40ft skeletal trailer chassis semi trailer for sale
1. The main beam is completely perfect and no weld splice.
The main beam is the center of the stress, so it's easy to fracture from the splice site.
2. Reinforced suspension system. more stable and balanced, decreasing the maintance cost
3. High quality steel fender, more durable than plastic fender.
4. Bolted king pin, easy to replace it with a suitable king pin.
5. Reinforced plate on the gooseneck.
It's just the stress center, bearing more capacity
6. Embedded LED light or having a lamp cover
Our skeleton trailer is offering a wide range of styles, options and structures to suit your work load. Low profile, strong but lightweight design meet any transport need. The center of gravity is much lower than others which enhance stability and renowned reliability.
Specification
| 40ft Skeleton semi trailer |
| Weight | 7.0T |
| Dimensions | 12500x2500x1500(40ft) |
| Loading Capacity | 60T |
| Tyre | 12.00R22.5*12 pcs |
| Axles | 3axle |
| King Pin | 50 mm or 90 mm |
| Landing Gear | 28 ton |
| Suspension | Mechanical suspension |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
| Main Beam | Heavy duty and extra durability designed; welded by automatic underwater plasma cutting. |
| Height: 480mm Upper Plate: 14mm Middle plate: 8mm |
| Bottom plate: 16mm Material: Q345B Steel |
| Brake Air Chamber | 6 big air chamber,3 axle synchronization vavle |
| Tool box | One standard tool box |
| Water tank | By customer’s demand |
| Spare Tyre Rack | 2 pieces |
| Electrical | 12V |
| Light | LED light (specially intended for oversea market) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Pattern and Logo | According to customer’s request |
| Shipping Terms | By Bulk Cargo/45HQ/Ro-ro
|
Details
Through the introduction of foreign advanced design concept, in combination of the domestic transport situation, and through the analysis by finite element analysis system, our company Master standard skeleton container semi-trailer built through elaborate design, in which the frame weight is reduced in all aspects, meets the customer demands for meeting the standard loading capacity to maximum extent and creating maximum profit.
Terminal container trailer for sale , welcome to inquiry !
Service
1. the satisfied product with high level standard;
2. the full aspect service from order to shipping;
3. give customer most suitable advice when customer has special needs for your transportation
or construction;
4. help customer to get the related spare parts of trailer or tractors if customer needs.
Welcome to visit our factory!
Product Tags:
|
|
3 Axle used container semi trailer , 40ft skeletal trailer chassis semi trailer Images
|
