Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

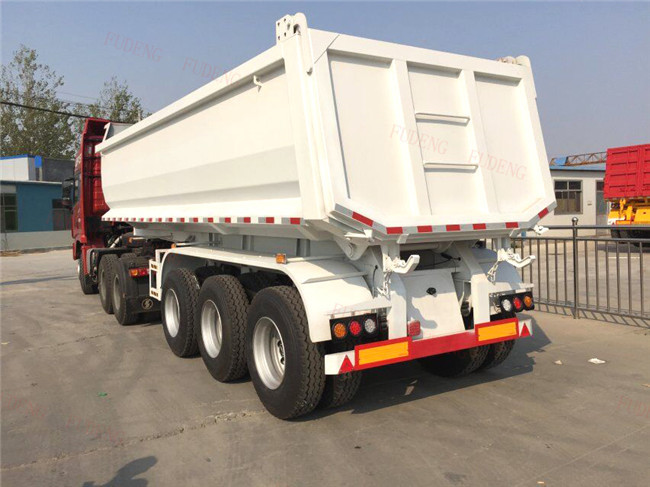

Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension

Name: Tri Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension
Brand: FUDENG Brand Dump Semi Trailers
Price: 1 USD

Quality Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension for sale

Brand Name : FUDENG Brand Dump Semi Trailers

Model Number : Dump Semi Trailers

Certification : ISO ,BV,SGS

Place of Origin : Shandong,China(Mainland)

MOQ : One unit Dump semi trailers

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500Units per Month

Delivery Time : 20-30days after deposit

Packaging Details : Nude packing.Shipping by the Bulk cargo or Ro-Ro

Axles : Fuwa/BPW/Chinese brand

Materal : Steel

Shape : U or Square shape

Landing Gear : JOST 28Tons

Payload : 30-60Tons

Size : 9000mm X2500mm X3700 mm

Color : Customized

Functions : Transport sand,earth work, stone,etc

Price : negotiation

Contact Now

Tri-axles 60 tons rear dump tipper semi trailer 2 or 3 axlessand rock coal transport

U shape Dump semi Trailer equiped with HYVA hydraulic cylinder, which is famous

brand. It has more reliable and more safety.With access to a multi-sized dump trailer, FUDENG

Vehicle provides quality, reliable and delivers safe for any size project in oversea market. It is

a public works job or a private developer project.

Specifications
Tank Body
Shape	U shape
Dimension	92.71.85m (Outside)
Box Dimension	8.32.61.85m 40cbm
Payload	40T
Tare weight	About 11T
Lifting system	196 hydraulic jacking Hyva Brand
Chassis
Frame	Welding design or Special design Two beams.Square beam, connected by bolts and nuts, Q345B carbon steel material Two beams.
Frame Beam	Upper and lower plate is 16mm and 18mm, middle is 8mm.height is 500 mm Bottom plate :5mm Side plate:5mm
Axle	3 axles, 16T FD Brand
Landing Gear	Standard 28T JOST brand
King Pin	2.00 or 3.5 inch bolt-in king pin JOST brand
Suspension	Mechanical suspension
Leaf Spring	90mm(W)16mm(T)10 Layer
Pneumatic	WABCO RE 6 relay valve, 3 axles synchronization
Braking System
Tire	315/80R22.5 optional
ABS	KEMI brand
Accessories	One standard tool box
Voltage	24V

60Tons Dump semi trailers Model.

Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension

3 Axle Dump Semi Trailer is ideal equipment to transport construction materials. It equipped with famous hydraulic lifting system hyva cylinder. It is also equiped with famous axle BPW or Fuwa brand. Its tires are also famous brand, Double Coin or Triangle brand as your optional choice.

2 Axles U Shape Dump semi trailer.

Tri - Axle Hydraulic Dump Semi Trailer U Or Square Shape 40CBM Box Dimension

Welcome to visit our factory!
